Are you trying to find the speed sensor position in a Ford transmission? Is it difficult for you to locate or replace the Ford transmission speed sensor? The solution is provided in this article.

Furthermore, we detail how to inspect and replace the sensor and the signs that it is malfunctioning.

Come on, let’s have a look right now!

Where Can I Find the Ford Transmission Speed Sensor?

Do you need to know the exact location of the Ford transmission speed sensor? It’s close to where the car’s gearbox connects to the road. You may refer to your Ford’s handbook if you still have trouble locating the speed sensor.

Your transmission speed sensor is positioned to read the shaft’s rotation and speed, which it then sends to the engine computer through cables.

The transmission speed sensors monitor your vehicle’s speed all the time. In addition, it lets the engine’s computer optimize its settings for maximum efficiency.

Furthermore, the trans-speed sensor detects both the torque and the shifting mechanism. Without it, your torque converter won’t do its job, and you won’t be able to shift gears in the right order.

Ford Speed Sensor Malfunction Symptoms

The Ford Windstar has a history of gearbox and speed sensor problems. The following symptoms may indicate that your vehicle’s speed sensor is malfunctioning.

1. Inoperative Cruise Control

Cruise control might make it easier to keep a steady speed while driving. Simply depressing the accelerator pedal will cause the vehicle to move at speed you specified in the car’s electric system.

Maintaining a consistent pace as you approach each open section of road, may significantly reduce the amount of gas you consume, which is both financially beneficial and environmentally preferable. However, this function cannot work without the data provided by your transmission’s output sensor.

If your cruise control is not working, it may be because of a faulty speed sensor.

2. Inappropriate or Harsh Shifting

Without a speed signal from the sensors, your powertrain control module cannot regulate the transmission shifts as intended.

Because of this, your Ford’s speed sensor won’t work properly. Your shifting will occur unexpectedly or suddenly whenever this problem manifests itself.

Due to a shift timing problem brought on by the sensors’ failure, the period between shifts will have to be stretched out. When shifting becomes problematic, it may harm the transmission’s internal components.

3. The Warning Light for the Engine Has Come On

The check engine light is one of the most important indicators of automotive trouble. Any time it lights up, you know there’s trouble with your automobile.

If this indicator lights up, it’s time to take your vehicle in for service. This will tell you whether the input speed sensor for the gearbox is functioning properly.

Find the Ford Transmission Speed Sensor

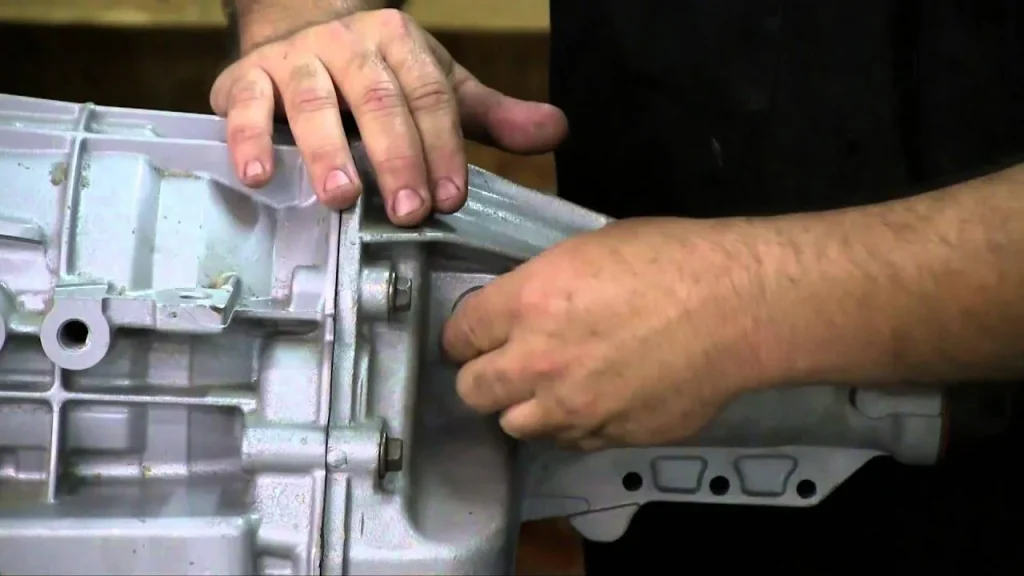

Here’s How to Check Your Ford Transmission Speed Sensor

A faulty transmission output speed sensor is easy to see, but a proper diagnosis needs access to a multimeter. To make sure your gadget works, follow these instructions!

  • Raise the front of the automobile.
  • Determine where the speed sensor for the transmission is situated about the gearbox housing.
  • Before beginning testing, you should prepare for engine oil leaks by placing an oil drain pan and a bucket underneath your sensor.
  • Disconnect the sensor from the gearbox housing.
  • Get rid of the sensor’s wire connection.
  • The keys should be in the ignition, but you should turn the engine off.
  • Attach the probes of the multimeter’s voltmeter to the standard and underground cables of the speed sensor connection.
  • Your sensor is likely defective if you are not getting any voltage readings.

How to Replace a Ford Transmission Speed Sensor

Small cars, sports cars, minivans, SUVs, and even massive pickup trucks are all available from Ford Motor Company. If you drive a Ford, the gearbox has a speed sensor. The transmission speed sensor’s job is to keep tabs on your velocity and regulate it accordingly.

The speedometer receives data from the transmission speed sensor, which displays the speed traveled speed. If your speedometer is acting erratically or has stopped working, you may need to replace the speed sensor. So, to change the speed sensor, you need to follow some basic steps.

Step 1

Place the Ford on a flat surface and wait 30 minutes to start it up again.

Step 2

Raise Ford’s front end using jack stands so you can get beneath it. You’ll need to drop it inside the gearbox to get to the speed sensor.

Step 3

Discover the speed sensor by crawling underneath the car. The sensor on a Ford transmission may be found on the driver’s side, at the back of the gearbox. The sensor is a magnetic device with an electrical connection that is screwed into the transmission. So, if you need more assistance, see your user manual.

Step 4

Yank the plug out of the electrical outlet. To disconnect the connection from the sensor, push the tabs on each side and pull. You may take the sensor out of there immediately. Using a wrench, remove the sensor’s connection to the gearbox by twisting it counterclockwise. Thus, pull the sensor straight out of the gearbox to get rid of it.

Step 5

Replace the old sensor with the new one. Connect the sensor to the transmission where it will do the most good. To fasten the sensor, turn the wrench clockwise until it no longer budges. If the replacement sensor has a plug, insert it into the electrical connection until you hear a click. There is now a sensor in place. Pull out from beneath the car. Carefully lower the jack, and you may start using the sensor now.

ford Transmission speed sensor


Where are the transmission speed sensors located?

Raise the front of the car for more ground clearance and find the speed sensors at the front and back of the gearbox casing.

What is the difference between a vehicle speed sensor and a transmission speed sensor?

In addition to “transmission speed sensor” and “output shaft speed sensor,” “vehicle speed sensor” (VSS) is a frequent name for this component. It is a tiny device, often installed on the gearbox, that measures the rotation of a toothed wheel on a shaft within the transmission to calculate the vehicle’s speed.

How do I know if my transmission speed sensor is bad?

Not being able to use the cruise control, having the transmission shift harshly, or the Check Engine light going on are all common warnings.

Is it easy to replace a speed sensor?

You can easily replace a wheel speed sensor in no more than an hour. The ABS wheel speed sensors are a distinct component that you can remove without disturbing the rest of the wheel bearing hub assembly.


The  Ford transmission speed sensor location is no longer a mystery. You may either look for it near the transmission’s output shaft or consult the guidebook.

We’ve given the details of how to replace the Ford speed sensor and the symptoms of a bad speed sensor transmission.  Thus, you can replace and locate the Ford transmission speed sensor. You can read more guide details about your car at Vehiclenest.
